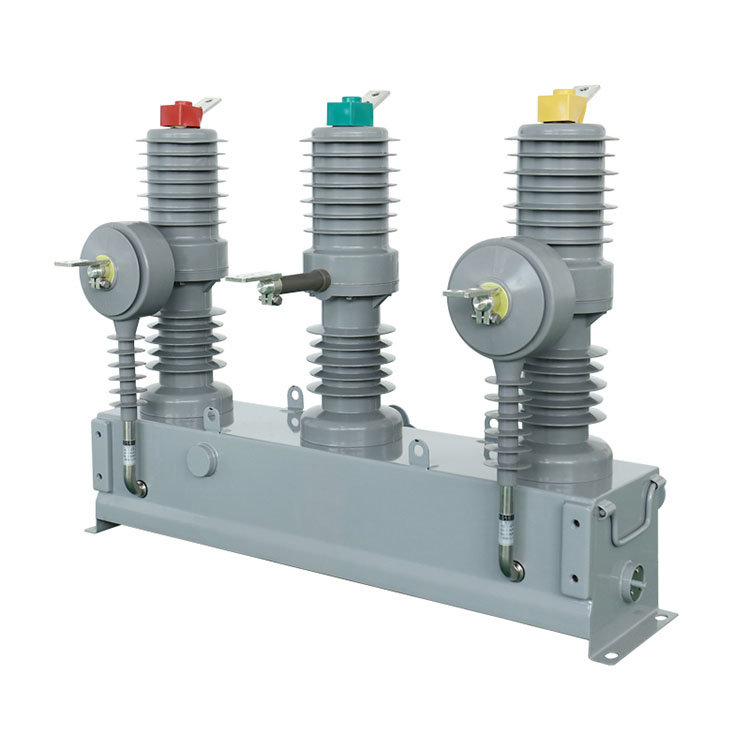

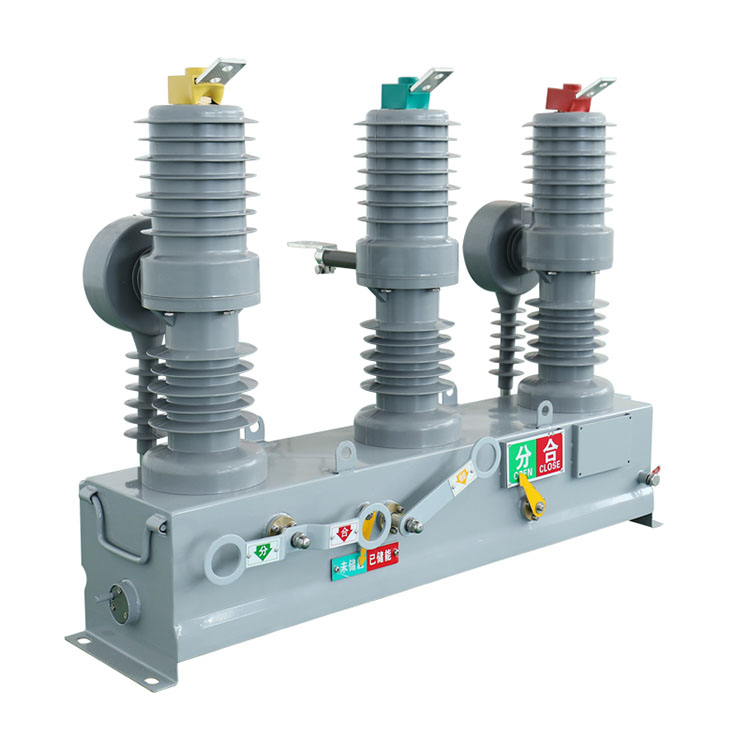

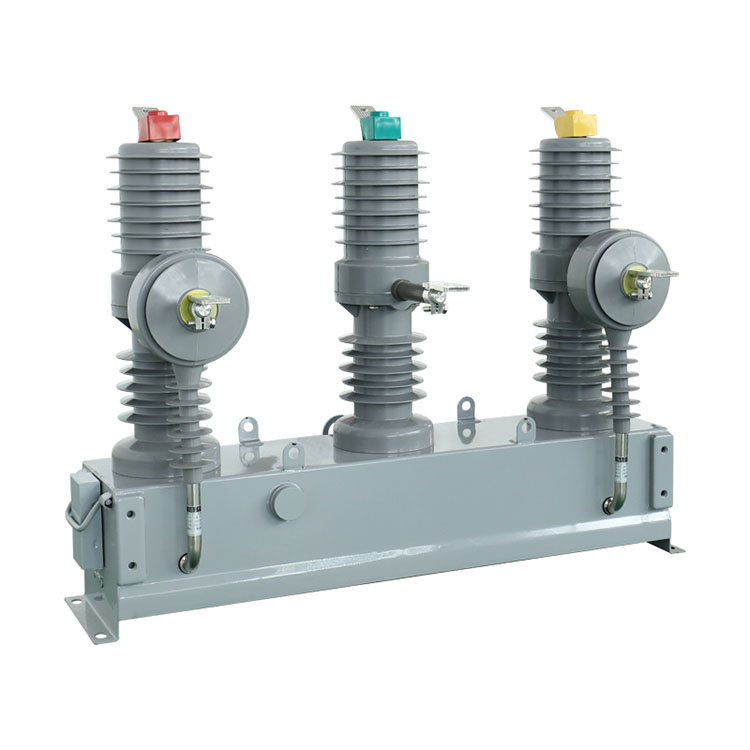

24 Kv Pole Mounted Vacuum Circuit Breaker

Zi Kai 24 Kv Pole Mounted Vacuum Circuit Breakerproduct parameters:

Zi Kai 24 Kv Pole Mounted Vacuum Circuit Breaker Outline and mounting dimensions

Zi Kai 24 Kv Pole Mounted Vacuum Circuit Breaker Application

Distribution network:

In the distribution network, the 24kV vacuum circuit breaker on the column is used as a key control and protection element for the distribution and transmission of electrical energy. They are installed on utility poles so that the circuit can be quickly cut off or switched on when needed, protecting downstream equipment and lines from failures such as overload and short circuits.

Substation and switchboard:

In substations and switchboards, circuit breakers are used as incoming and outgoing line switches or bus-block switches to achieve control of different power circuits. They can quickly respond to system instructions under automatic or manual operation to achieve reliable circuit switching.

Industrial and commercial electricity:

For large industrial and commercial facilities, such as factories, shopping centers, hospitals, etc., 24kV vacuum circuit breakers on columns are widely used in power distribution systems. They ensure the stability and reliability of the power supply, while being able to quickly cut off power in the event of a failure, protecting equipment and personnel.

Zi Kai 24 Kv Pole Mounted Vacuum Circuit Breaker Details

certificates

Normal operating conditions

Ambient temperature range: between -40℃ and +40℃.

Air humidity requirements: The daily average relative humidity must be kept below 95%, and the monthly average relative humidity must not exceed 90%.

Altitude limit: The altitude of the equipment applicable environment should not exceed 3000 meters.

Wind pressure capacity: The maximum wind pressure that the equipment can withstand is 700Pa, which is equivalent to the wind pressure strength when the wind speed reaches 34 m/s.

Pollution grade standard: The equipment should meet the requirements of Class IV pollution grade, that is, its specific creepage distance should not be less than 31 mm/kV.

Ice thickness limit: In ice conditions that may be encountered, the ice thickness of the equipment surface should not exceed 10 mm.

Installation site conditions: The device must be installed in an environment free from fire and explosion risks, serious pollution, chemical corrosion, and violent vibration to ensure safe and stable operation.

FAQ

1、What is your packaging standard?

Usually we use standard foam and carton packaging. If you have special requirements, we can also meet your requirements.

2、Why do you buy from us instead of other suppliers?

More than 10 years experience in design and manufacture of high voltage switchgear accessories. It is one of the largest star suppliers in the industry, and has won international and domestic praise, and has been shortlisted for the National Grid.

3、What services can we provide?

Acceptable delivery methods :FOB,CFR,CIF,EXW,FCA, Express;
Accepted payment currency: USD, EUR, GBP, RMB;
Payment methods accepted: Wire transfer, L/C, MoneyGram, credit card, Western Union, cash;
Languages: English, Chinese
